| Type | Desktop |
| Function | Copy, print, scan, optional: fax |
| Print technology | Laser b/w |
| Original format | max A3 from platen glass |
| Original feeder | 50 sheet A4 (standard), min 140 x 182 mm, max 297 x 432 mm, 45-160 g/m² (simplex), 50-120 g/m² (duplex) |
| Print speed (DIN-A4, Simplex) B/W | 25 b/w-pages/min. |
| Print speed (DIN-A3, Simplex) B/W | 12 b/w-pages/min. |
| Copy speed (DIN-A4, Simplex) B/W | 25 b/w-pages/min. |
| Copy speed (DIN-A3, Simplex) B/W | 12 b/w-pages/min. |
| 1st page (printing, b/w) | 5.8 seconds |
| 1st page (copying, b/w) | 5.8 seconds |
| Warm-up time | 19.5 seconds |
| Copy resolution | 600 x 600 dpi |
| Greyscales | 256 |
| Paper feed (Universal cassettes amount) | 1 x 500 sheet |
| Paper feed (1st cassette types) | A5R-A3 |
| Paper feed (Multi-Bypass amount) | 100 sheet multi-bypass (A6R-A3) |
| Paper feed (Multi-Bypass types) | A6R-A3 |
| Paper weights (Universal cassette min) | 60 g/m² |
| Paper weights (Universal cassette max) | 163 g/m² |
| Paper weights (Multi-Bypass min) | 45 g/m² |
| Paper weights (Multi-Bypass max) | 256 g/m² |
| Paper weights (Duplex min) | 60 g/m² |
| Paper weights (Duplex max) | 163 g/m² |
| Paper output | 250 sheet A4 |
| Job Separator | 50 sheet A4 (standard) |
| System memory (RAM) | 1 GB |
| System memory (RAM max) | 3 GB |
| System memory (Optional) | 32/128 GB SSD |
| Continuous copying (min) | 1 |
| Continuous copying (max) | 999 |
| Zoom (min) | 25 % |
| Zoom (max) | 400 % |
| Zoom (step) | 1 % |
| Functions | Colour touch screen (4.3 inch), duplex, Print from/Scan to USB Stick, job reservation, N-up, favourites, 100 management codes, etc. |
| Dimensions (height) | 688 mm |
| Dimensions (width) | 590 mm |
| Dimensions (depth) | 590 mm |
| Weight | 49 kg |
| Mains voltage | 220/240 V |
| Utility frequency | 50 Hz |
| Power consumption (max) | 1270 W |
| Power consumption (busy) | 410 W |
| Power consumption (standby) | 65 W |
| Power consumption (sleep) | 0.5 W |
| Power consumption (TEC) | 0.29 kwh/week |
| Noise level (busy, b/w) | 44.9 dB(A) |
| Noise level (standby) | undefined dB(A) |
| Safety | GS/TÜV, CE |
| Type | Integrated within the system |
| Print format | A6R-A3 |
| Print resolution (max) | 1,200 x 1,200 dpi |
| Processor | ARM Cortex-A9 Dual core 1.2 GHz |
| Interfaces | USB 2.0, 10/100/1000BaseTX, USB host (2), NFC, Wi-Fi |
| Network protocols | TCP/IP, Net BEUI |
| Operating systems | Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Novell NetWare, Linux, Mac ex OS 10.5 |
| Emulations | PCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, PDF 1.7, XPS |
| Functions | USB direct printing, printing of e-mails, PDF/XPS direct printing, private printing, barcode printing, Mobile Print (Android/iOS), Apple AirPrint, Google Cloud Print, Wi-Fi |
| Scan type | CIS colour and b/w |
| Scan format | max A3 |
| Scan speed (Feeder 1, simplex, colour) | 50 DIN-A4-image pages/min. in 300 dpi |
| Scan speed (Feeder 1, simplex, b/w) | 50 DIN-A4-image pages/min. in 300 dpi |
| Scan speed (Feeder 1, duplex, colour) | 16 DIN-A4-image pages/min. in 300 dpi |
| Scan speed (Feeder 1, duplex, b/w) | 16 DIN-A4-image pages/min. in 300 dpi |
| Scan resolution | 200 dpi, 300 dpi, 400 dpi, 600 dpi |
| Scan mode | Photo, text, photo/text, optimised for OCR |
| File types | TIFF, PDF, XPS, OpenXPS, high compression PDF, JPEG |
| Interfaces | 10/100/1000BaseTX, USB 2.0 |
| Network protocol | TCP/IP |
| Operating systems | Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016 |
| Functions | Scan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP |
| Type | optional Fax System 13 |
| Compatibility | Super G3 |
| Original format | max A3 |
| Modem speed | 33.6 kbps |
| Transmission speed | 3 seconds or less using JBIG |
| Compression method | JBIG, MMR, MR, MH |
| Fax resolution | Standard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi) |
| Fax memory | 16 MB |
| Fax memory (image) | 12 MB |
| Abbreviated dial | 200 numbers |
| One touch dial | 100 numbers |
| Group dial | 50 numbers |
| Operating systems | Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016 |
| Functions | Network fax driver, automatic redialling, delayed transmission |

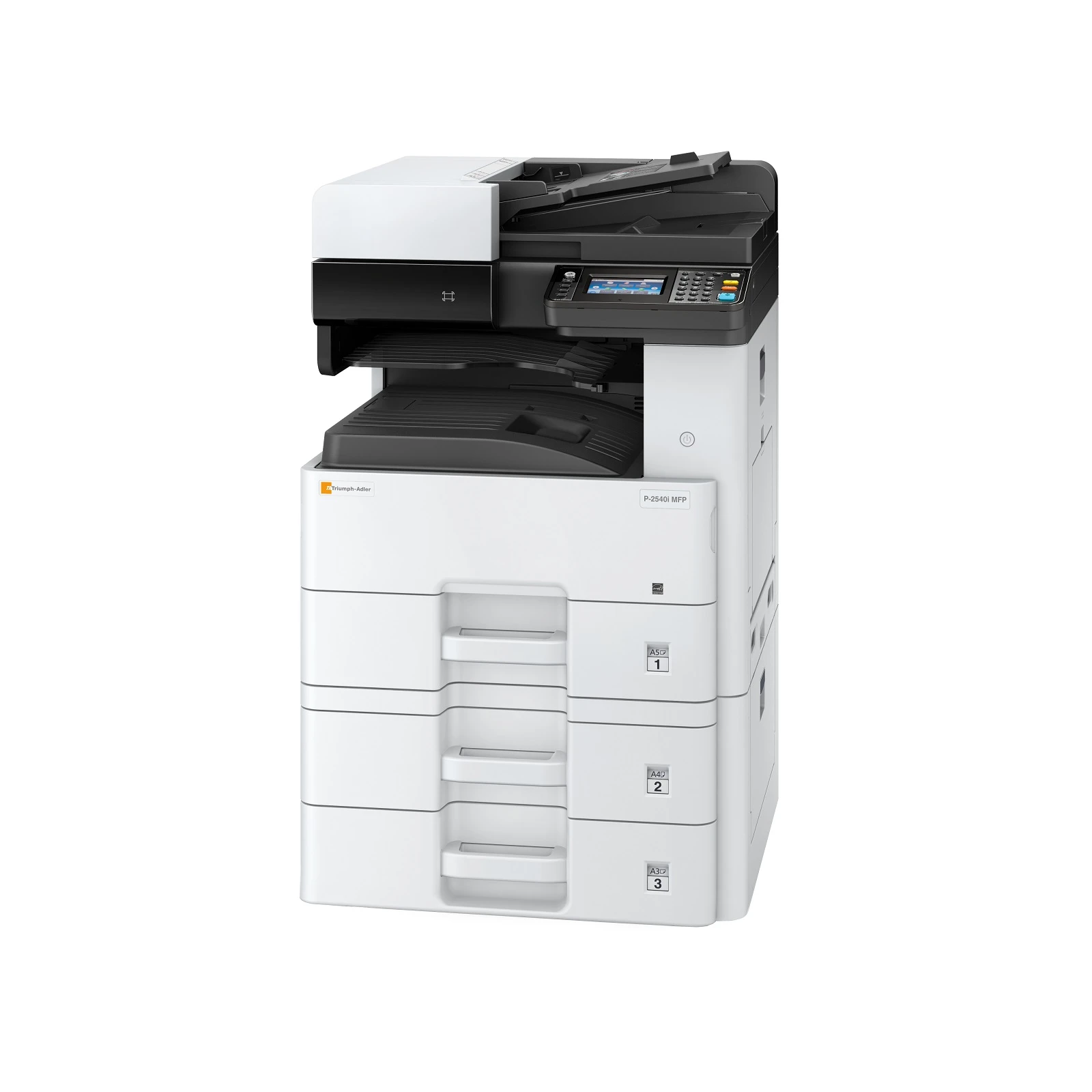

| Paper feed | PF-470 (1 x 500 sheet universal cassettes (A5R-A3)), PF-471 (2 x 500 sheet universal cassettes (A5R-A3)) |
| Other options | Data security kit (E), Scan extension kit (A), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 62 |
